LED Video Wall Hire
LED video wall hire built on LEDFUL KO3.9 panels with Novastar processing — VX400S-N, VX600 Pro and CMS130 processors — plus the hanging brackets to fly or ground-stack the wall.
The KO3.9 is a 3.9mm pitch panel in 1000mm × 500mm modules, suited to conference sets, stages and exhibition stands where the audience sits a few metres back. Walls are quoted as complete systems: panels, processing, rigging, power and data, with our staging and rigging stock covering the structure they hang from.
8 × 2Panels · 16 total
4.0 × 2.0 mWall size
1024 × 512Resolution
~2.3 kWPower draw

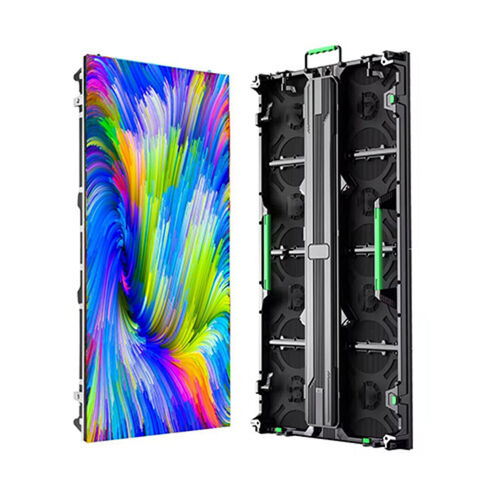

LEDFUL KO3.9 Video Wall Panel 1000 x 500 × 16
|
£480.00/ 48 hours |
Novastar CMS130 LED Video Wall Processor × 1
|
£30.00/ 48 hours |
LEDFUL Video Wall Ground Mount × 5
ground stack estimate - confirmed on every order
|
£100.00/ 48 hours |
LEDFUL Video Wall 1.0m Ladder Truss × 15
vertical ladder truss
|
£90.00/ 48 hours |
LEDFUL Video Wall 1.0m Ladder Truss Joining Bar × 10
|
£60.00/ 48 hours |
LEDFUL Video Wall Ground Mount Spreader Bar × 4
|
£24.00/ 48 hours |
LEDFUL Video Wall Ground Mount Spreader Bar Joining Plate × 3
|
£18.00/ 48 hours |
LEDFUL Video Wall Truss To Panel Bracket × 16
2 brackets per column
|
included |
LEDFUL 0.4m Powercon M to F × 8
power jumpers between panels
|
included |
LEDFUL 1.2m Powercon F to F × 8
power feed per column
|
included |
LEDFUL 0.4m Ethercon × 8
data jumpers between panels
|
included |
LEDFUL 1.2m Ethercon × 8
data feed per column
|
included |
LEDFUL KO3.9 Video Wall Panel Flight Case × 3
6 panels per case
|
included |
8 × 2 panels → 4 m × 2 m, 1024 × 512 px
ground-supported walls may need ballast
